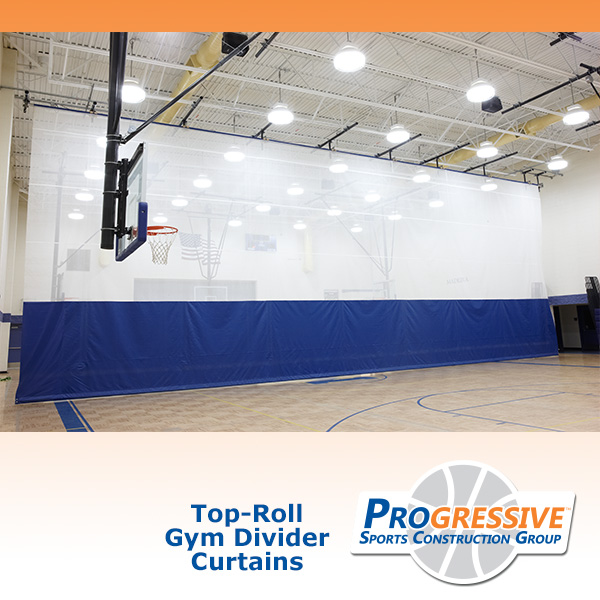

Top-Roll Gym Divider Curtains





The Top Roll Divider Curtain uses no hoist cables or straps to raise and lower the curtain. Curtain has a drive motor located externally at one end of drive shaft. Top-Roll divider stores tighter than most other curtain designs making it ideal for low ceiling heights. Design allows for any combination of vinyl and mesh.

  • All electrical connections are made at and stay at ceiling level.
  • The Top-Roll motor is mounted externally allowing it to cool properly.
  • Total hanging weight is, on average, 3/4 lb. per sq. ft.
  • An electric winch is provided with Top-Roll Gym Divider.
  • Outer edges are turned and welded to prevent fraying.
  • Available in combination of mesh and 18 oz. vinyl.
  • Maximum dimensions: Height – 30’ (915 cm) Width - 100’ (3,048 cm)
  • Must be square or rectangular shaped
  • Stores in as little as as 14" (35.5 cm) when directly attached to roof structure
  • A minimum clearance of 6” (152 mm) is required between vertical edges and adjoin curtain or fixed objects, but at least 3’ 0” (915mm), is recommended to allow egress at curtain ends.
