Includes three #10 x 1-½" (38 mm) flat-head wood screws.
|
|
Includes three #10 x 1-½" (38 mm) flat-head wood screws.
|
|
Includes four #10 x 1-½" (38 mm) flat-head wood screws.
|
|
Includes four #10 x 1-½" (38 mm) flat-head wood screws.
|
|
Cover plate assembly is 7-½" (19 cm) OD by ½" (13 mm) thick. Opening diameter is 4-3/8" (111 mm).Includes six #10 x 1-½" (38 mm) brass flat-head wood screws.
|
|
3-½" (89 mm) ID floor sleeve compatible with Elite, Power, Combination, and Steel Volleyball Systems, and Power Tennis Systems.Requires minimum 4-1/2” (114 mm) diameter opening for installation.
|
|
2-3/8” (60 mm) ID floor sleeve compatible with badminton systems and combination game standards.Requires minimum 4-1/2” (114 mm) diameter opening for installation.
|
|
Requires minimum 4-1/2” (114 mm) diameter opening for installation.
|
|
Requires minimum 4-1/2” (114 mm) diameter opening for installation. Compatible with any 4” (102 mm) OD post system.
|
|

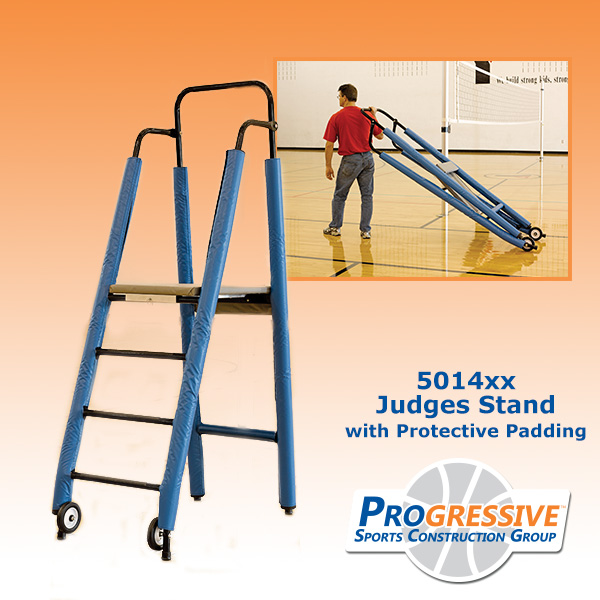

Platform folds flat to an overall size of 84” h x 30” w x 10” d (213 cm x 76 cm x 24 cm).Padded platform is 48” (123 cm) above the floor. Maximum allowable load is 250 lb.Available in 14 colors (xx – indicates pad color).
Supporting Documents
Submittal
Return to Top
|
|
Net meets rule requirements for FIVB, USA Volleyball, NCAA, and NFHS.Kit includes all necessary adapter cables, hardware, and net. Net dimensions: 32’ l x 39" h (975 cm x 99 cm) with a top cableless binding of 32’ 6" (990.6 cm).Net body constructed from #21 black knotted nylon 4" (102 mm) square mesh.A 2" (51 mm) wide, 10,000 lb (4536 kg) tensile strength white binding surrounds entire net body.
|
|
The anchor is equipped with a spring-loaded flush fairing, standard ½” (13 mm) -13 threads, and a 3-½” (89 mm) diameter flange for securing to wood flooring.Includes One 1oz. Bag of Set-45® Concrete Mix
Supporting Documents
Submittal
Return to Top
|
|
All welded construction, sleeve has a 6” (152 mm) OD and 11 Ga tubing, with 2" x 3" x 3/16" (51 mm x 76 mm x 5 mm) steel angles and ¼" (6 mm) HR Flat Steel. Black powder coat finish.
Supporting Documents
Submittal
Return to Top
|
|

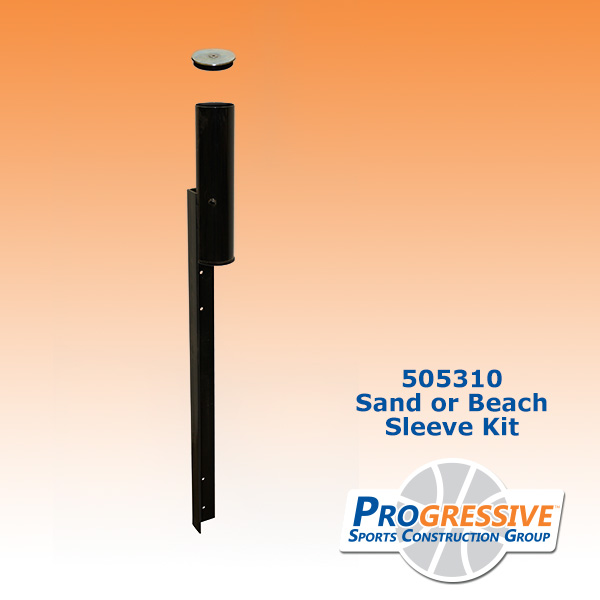

Sleeve constructed with 3-¾” (95 mm) OD tubing with inside diameter of 3.56” (90.4 mm) and 2” x 3” x 3/16” (51 mm x 76 mm x 5 mm) steel angle. Pre-drilled steel angle includes hardware.Requires two 2 x 6 treated lumber spreaders and 7/32 hex key to tighten seal cap.Black powder coat finish.
|
|
Requires 7/32 hex key to tighten seal cap.Black powder coat finish.
|
|
Requires 7/32 hex key to tighten seal cap.Black powder coat finish.
|
|
|
